DC NH Blade Fuse – 100A / 125A / 160A, 12–1000VDC for Battery & Inverter Protection
Product Overview

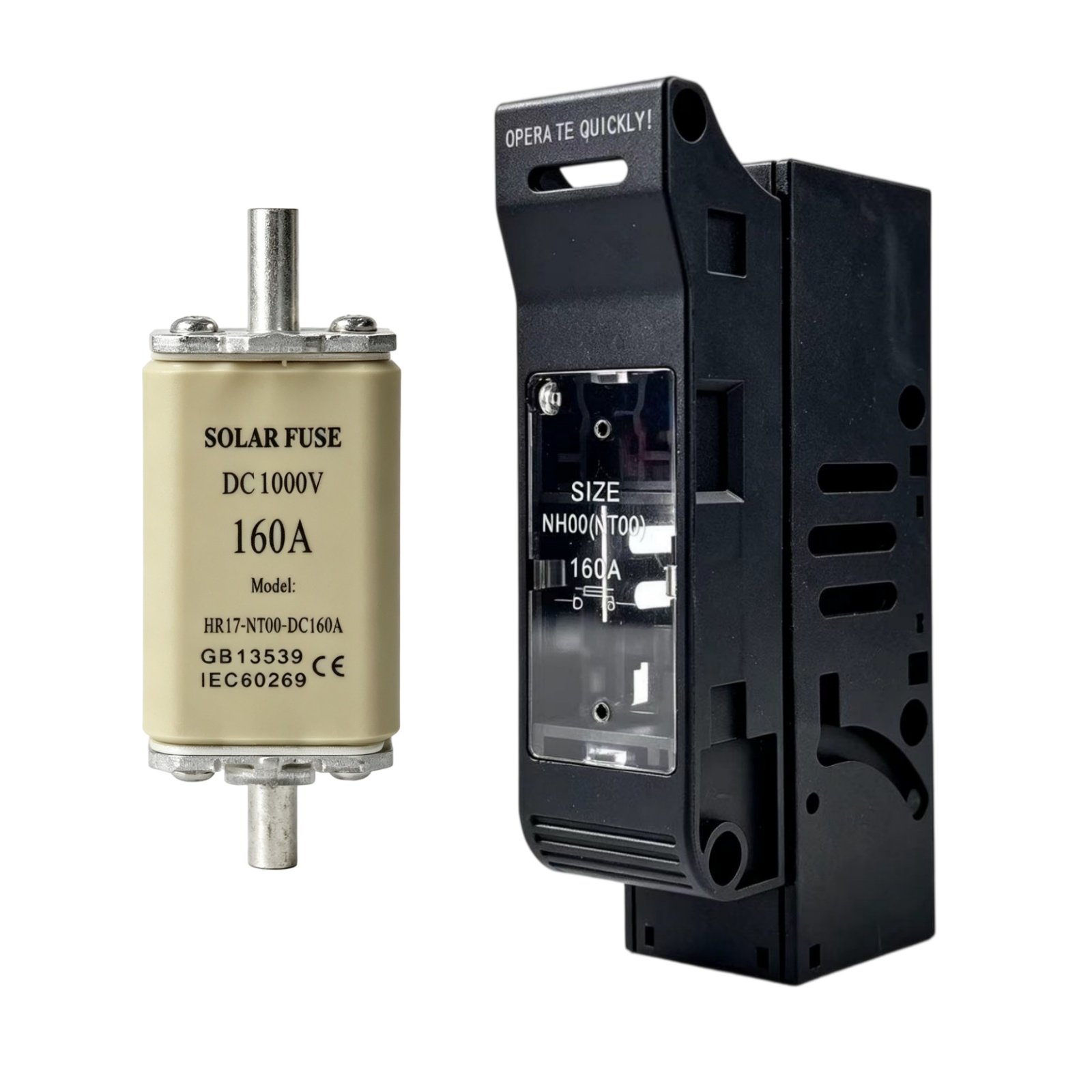

This DC NH blade fuse is designed for the critical DC link between battery banks and inverters. With a wide rated voltage range of 12–1000VDC and current ratings of 100A, 125A, and 160A, it provides reliable short-circuit and overcurrent protection in energy storage, solar, UPS, telecom, marine, RV, and industrial DC systems.
The NH knife-blade construction allows direct mounting in standard NH fuse bases and holders, making it an ideal replacement or OEM solution for DC distribution cabinets, battery disconnect boxes, and inverter input protection
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | DC NH Blade Fuse / NH Knife-Blade Fuse Link |
| Rated Current | 100A, 125A, 160A |
| Rated Voltage | 12–1000VDC |
| Fuse Size | NH00 / NH1 (confirm based on model) |
| Standard | IEC 60269-1, IEC 60269-7, DIN 43620 |
| Breaking Capacity | [XX] kA @ 1000VDC; [XX] kA @ 500VDC |
| Body Material | High-strength ceramic / insulating body |
| Contact Material | Copper alloy, silver-plated |
Selection Guide
| Model / Part No. | Rated Current | Rated Voltage | NH Size | Typical Application |
|---|---|---|---|---|
| NH-DC-100A-1000V | 100A | 12–1000VDC | NH00 / NH1 | Battery-to-inverter, ESS, UPS |
| NH-DC-125A-1000V | 125A | 12–1000VDC | NH00 / NH1 | Battery-to-inverter, solar inverter |
| NH-DC-160A-1000V | 160A | 12–1000VDC | NH00 / NH1 | Energy storage, DC distribution |
Key Features
-
12–1000VDC Wide Voltage Range
One fuse family covers 12V/24V/48V battery systems up to 1000VDC energy storage platforms. -
100A / 125A / 160A Available
Multiple current ratings to match different cable sizes, inverter power levels, and battery configurations. -
DC-Optimized Arc Extinction
Designed for direct current fault interruption, where DC arcs are harder to extinguish than AC arcs. -
High DC Breaking Capacity
Safely interrupts high fault currents in battery-fed circuits.
Breaking capacity: [XX] kA @ 1000VDC, [XX] kA @ 500VDC — confirm with datasheet. -
NH Knife-Blade Standard Contact
Fits standard NH fuse bases and holders for quick installation and replacement. -
Optional Dual Trip Indicator
Front and center indicators allow fast visual identification of a blown fuse, reducing downtime. -
Low Power Dissipation
Silver-plated copper contacts and optimized element design help reduce heat generation. -
OEM / ODM Support
Custom logo, label, packaging, and rated current options available for bulk orders. -
FAQ
Q1: Can this fuse be used between a battery and an inverter?

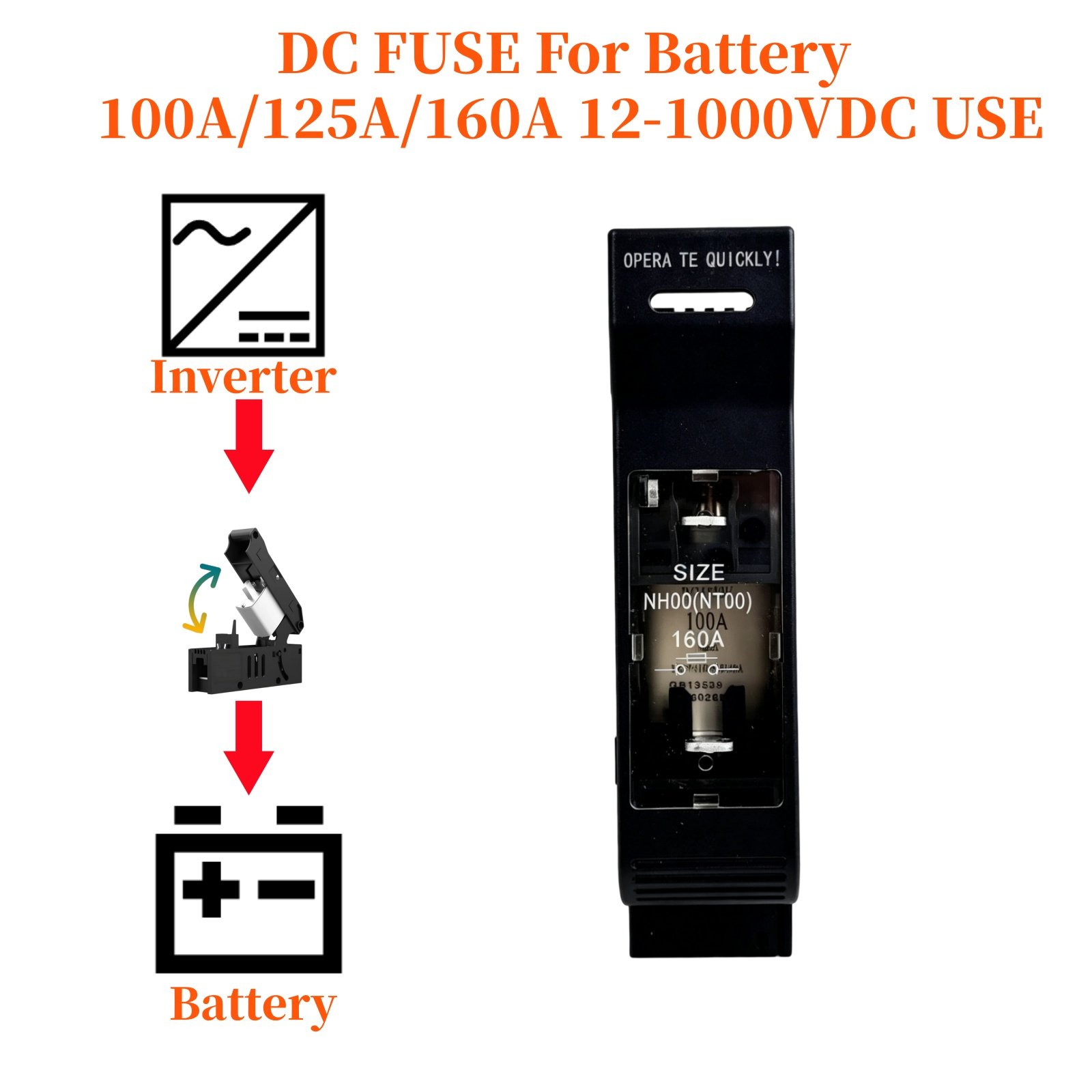

Yes. It is specifically suitable for the DC line between battery banks and inverters, especially when installed close to the battery positive terminal.
Q2: Is this fuse AC or DC?
It is optimized for DC systems from 12V to 1000VDC. AC ratings may differ. Please confirm with our sales team if AC use is required.
Q3: What NH size is available?
NH00 and NH1 are common options for 100A–160A. The correct size depends on the fuse holder and system design. Please confirm before ordering.
Q4: Do you provide OEM/ODM service?
Yes. We support custom logo, label, packaging, and rated current requirements.
Q5: What certifications are available?
Products are manufactured according to IEC/DIN standards. UL, CE, and RoHS versions are available on request.
Q6: What is the MOQ and lead time?
MOQ and lead time depend on model and customization. Please contact us for a quotation.
-
Download Datasheet
